CS12-5 Double Spindle 5 Axis Swiss Type CNC Lathe with 12 mm Max Processing Diameter and Dual Channel Control

main spindle max drilling Dia : Φ8mm

Sub spindle max tapping Dia : M4

main spindle tapping Dia : M6

Sub spindle max drilling Dia : Φ5mm

Control channels : Dual channel

Place of Origin : Made in China

maximum single feeding length (Rotary guide bush) : 135mm

Rotary tools max drilling Dia : Φ5mm

maximum single feeding length (Without guide bush) : 1:2.5D(Dia:Length)

Rotary tools max tapping Dia : M4

Minimum setting unit : 0.001mm

MOQ : Not specified

max processing diameter : 12 mm

System : SYNTEC 220TB-A

Brand Name : JianKe

Contact Now

JIANKE CS12-5 Double Spindle 5 Axis Swiss Type CNC Lathe with 12 mm Max Processing Diameter and Dual Channel Control
Product Overview

The CS12-5 is a precision double spindle Swiss type CNC lathe featuring advanced sliding headstock technology for high-efficiency machining of small, complex parts.

Lathe Appearance / Tool Holder Structure
CS12-5 Double Spindle 5 Axis Swiss Type CNC Lathe with 12 mm Max Processing Diameter and Dual Channel Control

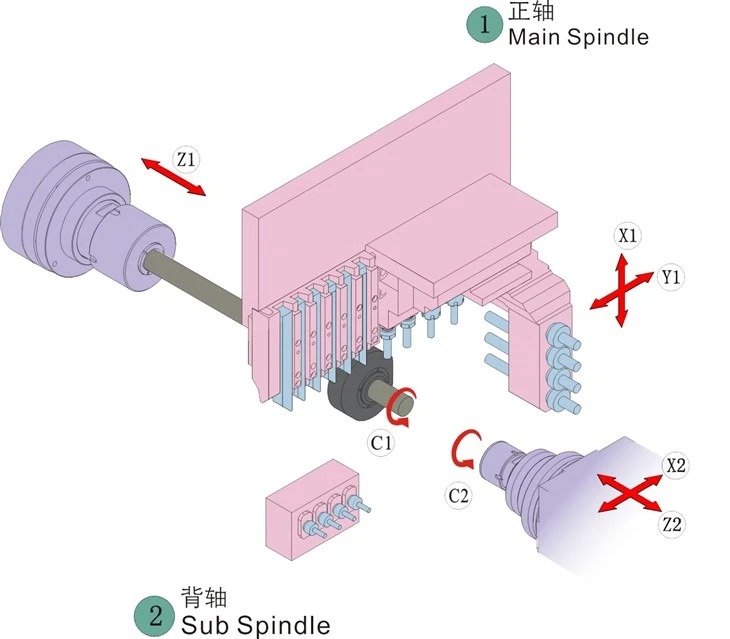

Structure Diagram
CS12-5 Double Spindle 5 Axis Swiss Type CNC Lathe with 12 mm Max Processing Diameter and Dual Channel Control
Key Features
  • Rotary Guide Bush/Without Guide Bush Changeable Modes: Supports both rotary guide bush mode for shaft workpieces (135mm single feeding length) and without guide bush mode for short workpieces with length to diameter ratio less than 1:2.5
  • Internal Oil Cooled Electric Spindle: Japanese oil cooled electric spindle technology with NSK bearings for enhanced rigidity, torque, and processing accuracy
  • Advanced Scrap Collection System: Separation platform for chip collection with 190L cutting oil tank featuring multi-channel filter screens and oil return baffles
  • Flexible Workpiece Ejection: Front discharge for parts under 85mm via conveyor belt, rear discharge through sub spindle for longer parts
  • Modular Expansion: Standard configuration includes 1 ER8 + 3 ER11 with 3 ER16 side rotary power tools supporting additional functions and tool positions
Technical Specifications
System SYNTEC 220TB-A
Control Channels Dual Channel
Minimum Setting Unit 0.001mm
Max Processing Diameter 12 mm
Maximum Single Feeding Length (Rotary Guide Bush) 135mm
Main Spindle Max Drilling Diameter Φ8mm
Main Spindle Max Tapping Diameter M6
Rotary Tools Max Drilling Diameter Φ5mm
Rotary Tools Max Tapping Diameter M4
Tool Base Arrangement Upper Row Tool Base
Main/Sub Spindle Speed 10000rpm/min (Main), 12000rpm/min (Sub)
Main Spindle Power (Rated/Max) 2.2kw/3.7kw
Lathe Dimensions 2.23m * 1.25m * 1.785m
Lathe Weight 1860KG
Standard Accessories
Item Quantity Description
Protective Cover 1 set
Spindles 2 units Main and Sub Spindle
Knife Holder for Turning Tools 1 set 6 pieces 10*10
Side Rotary Tools Base 1 set 1*ER8+3*ER11
Parts Receiver/Collector 1 set Standard with front ejector/belt conveyor
Tool Box 1 set Including wrenches, screwdrivers, and oil kettles
Optional Equipment
Equipment Function Notes
Bar Feeder Automatic feeding/refueling for long bar materials Recommended essential
High Pressure Pump Assists with chip breakage, removal, and erosion prevention Select according to demand
Oil Mist Collector Absorbs atomized oil mist to maintain workshop environment Select according to demand
Chip Conveyor Chain type conveyor for automated chip removal Select according to demand
Plug Type Modules End face rotary tools, angle rotary tools, thread whirling, etc. Confirm with JIANKE according to requirements
Main Component Brands
Component Origin and Brand
Operation System SYNTEC
Spindle and Driver Oil cooling electric spindle/SYNTEC driver
Bearing Japan NSK
Guide Rail/Screw Taiwan Hiwin
Electrical Components France Schneider
Lubricant System Japan Herg
Raw Material Requirements
  • Recommended use of polished/precision drawn materials with single bar length ≤ 3M
  • Material diameter tolerance consistency within ± 0.02mm
  • Material roundness tolerance consistency within 0.005-0.01mm
  • Material straightness within 0.35mm/m
  • All bar materials require chamfering at both ends
  • Large-diameter and irregular materials may require tail turning for bar feeder compatibility
  • Prior declaration required for material hardness above HRC28 degrees
Quality Assurance & Technical Support

One-year warranty period from final acceptance date. Comprehensive technical support including:

  • Pre-sales service: Free basic training for technical personnel at factory
  • In-sales service: On-site basic training upon equipment arrival
  • After-sales service: 24-hour response for equipment malfunctions
  • Technical support: Remote guidance and on-demand programming services
